Honeycomb Activated Carbon

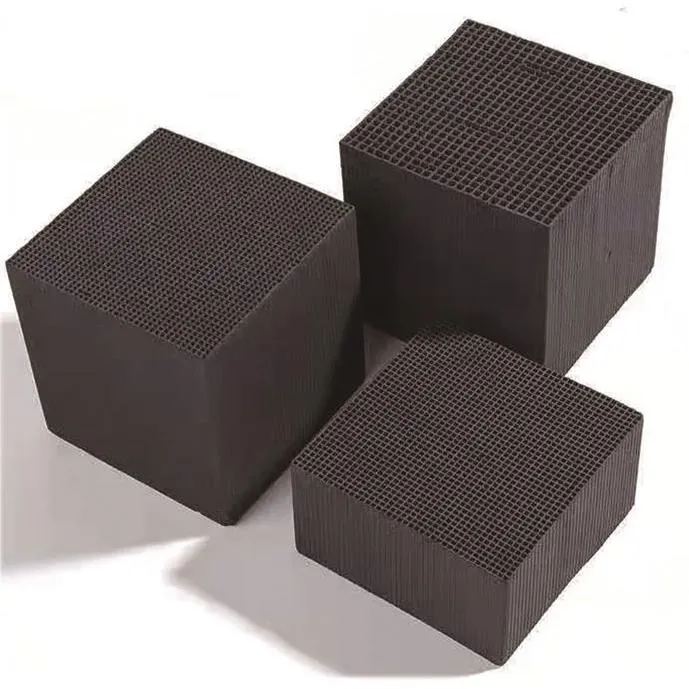

Formed honeycomb activated carbon with high contact area and relatively low airflow resistance for gas-phase pollutant adsorption.
Overview
Honeycomb activated carbon is formed from powdered activated carbon into a low-pressure-drop honeycomb structure. It is used where a large contact area is needed with limited fan power — typical of industrial VOC adsorption units. Two standard block sizes are offered: SFW-10 (100×100×100 mm) and SFW-5 (100×100×50 mm).

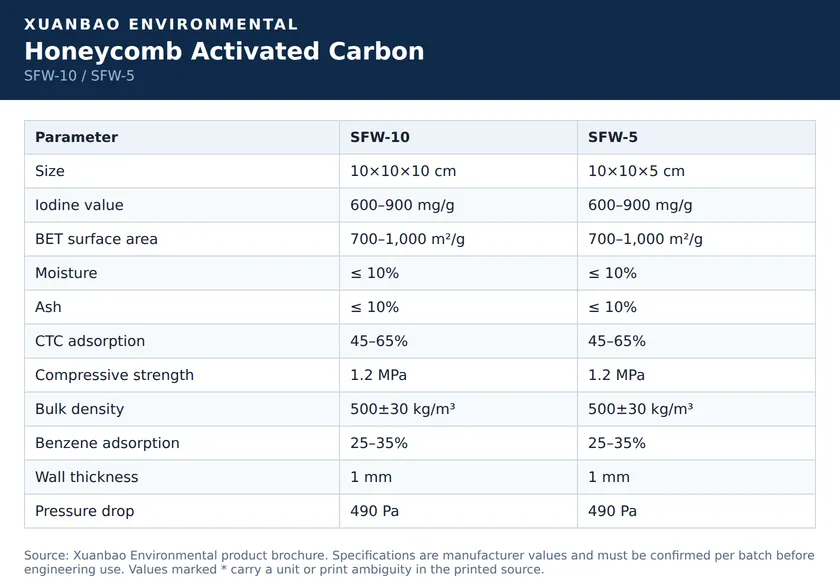

Technical Data
| Parameter | SFW-10 | SFW-5 |
|---|---|---|
| Size | 100×100×100 mm | 100×100×50 mm |
| Iodine value | 600–900 mg/g | 600–900 mg/g |
| BET surface area | 700–1,000 m²/g | 700–1,000 m²/g |
| Moisture | ≤10% | ≤10% |
| Ash | ≤10% | ≤10% |
| CCl₄ adsorption | 45–65% | 45–65% |
| Compressive strength | 1.2 MPa | 1.2 MPa |
| Bulk density | 500±30 kg/m³ | 500±30 kg/m³ |
| Benzene adsorption | 25–35% | 25–35% |
| Wall thickness | 1 mm | 1 mm |
| Pressure drop | 490 Pa | 490 Pa |
Values shown are manufacturer specifications or typical values unless marked (*). Parameters marked (*) are reproduced from source documentation and may contain unit or OCR ambiguities — they are reference values only and must be confirmed against the current product specification before use in engineering design. Design values are confirmed per project after operating conditions are reviewed. Please contact us for current data sheets.
Key Features
- Large contact area with low pressure drop
- Good mechanical strength
- Standard block formats, customizable sizes
Typical Applications
- Industrial VOC adsorption units
- Odor control
- Gas-phase purification
Application Limits & Conditions
Customization
Block size and specifications can be customized to the equipment layout.
Data to Provide for a Quotation
To receive a material recommendation and quotation, please share your operating conditions:
- Gas flow rate (Nm³/h) and inlet / target outlet concentration
- Gas composition and main pollutant components
- Operating temperature and humidity
- SO₂ and dust concentration (where applicable)
- Existing reactor dimensions and current catalyst / adsorbent type
- Required service life and any special requirements
Same family
Related Products
Coal-Based Columnar Activated Carbon
Extruded coal-based columnar activated carbon in 1.5 / 4 / 6 / 8 mm diameters for gas purification and industrial adsorption applications.
Coconut-Shell Activated Carbon
High-hardness, high-purity activated carbon produced from coconut shell by carbonization, crushing, screening, steam activation and refining.
Fruit-Shell Activated Carbon
Granular fruit-shell activated carbon for liquid-phase decolorization, water purification and catalyst support — STK and SXK series.
Activated Carbon Fiber
Fiber-form activated carbon filter material for low-concentration gas-phase pollutants, odors and combined dust filtration.
FAQ
Frequently Asked Questions
What is the typical pressure drop of honeycomb activated carbon?
The documented value is 490 Pa under standard conditions — far lower than granular beds, which is why honeycomb blocks are used for high-flow, low-pressure-drop applications.
How often is the carbon replaced?
Replacement depends on inlet concentration, humidity, temperature and duty cycle. We help size the bed and estimate replacement intervals from your conditions.
