Activated Carbon Fiber

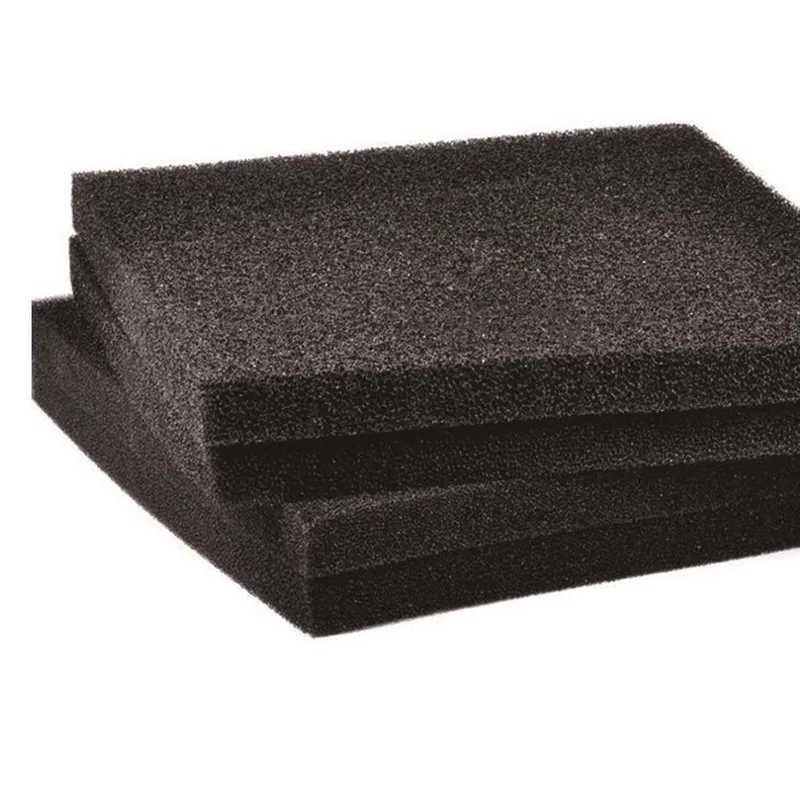

Activated carbon fiber filter material product photo for low-concentration VOC and odor control — Product photo — Xuanbao Environmental

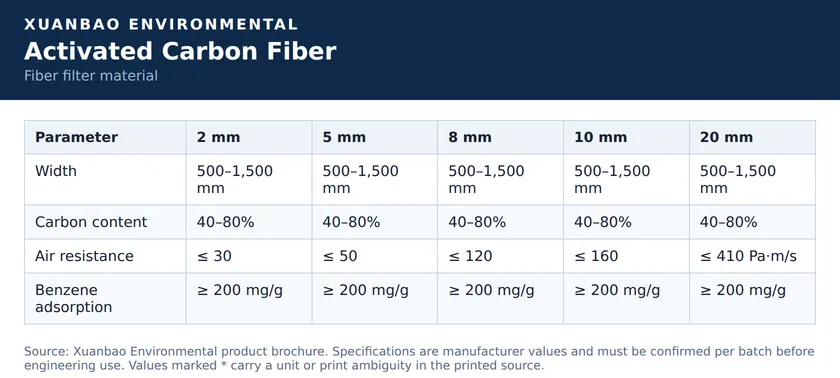

Activated carbon fiber specification sheet — thickness 2–20 mm, width 500–1,500 mm, benzene adsorption ≥200 mg/g

Overview

Activated carbon fiber provides fast adsorption kinetics in a flexible filter format, used for low-concentration VOC and odor control in air handling and ventilation systems.

Technical Data

Parameter	2 mm	5 mm	8 mm	10 mm	20 mm
Width	500–1,500 mm
Carbon content	40–80%
Air resistance	≤30	≤50	≤120	≤160	≤410 Pa·m/s
Benzene adsorption	≥200 mg/g

Values shown are manufacturer specifications or typical values unless marked (*). Parameters marked (*) are reproduced from source documentation and may contain unit or OCR ambiguities — they are reference values only and must be confirmed against the current product specification before use in engineering design. Design values are confirmed per project after operating conditions are reviewed. Please contact us for current data sheets.

Key Features

Fast adsorption kinetics
Flexible filter formats
Low pressure drop

Typical Applications

Odor removal
Benzene adsorption
Xylene adsorption
Formaldehyde adsorption
Methanol adsorption
Dust filtration (combined use)

Application Limits & Conditions

Best suited to low-concentration, low-temperature gas streams; capacity is limited compared with granular beds and replacement cycles must be managed. Specifications shown are manufacturer brochure values and must be confirmed per batch.

Data to Provide for a Quotation

To receive a material recommendation and quotation, please share your operating conditions:

Gas flow rate (Nm³/h) and inlet / target outlet concentration
Gas composition and main pollutant components
Operating temperature and humidity
SO₂ and dust concentration (where applicable)
Existing reactor dimensions and current catalyst / adsorbent type
Required service life and any special requirements

Same family

Related Products

Honeycomb Activated Carbon

Formed honeycomb activated carbon with high contact area and relatively low airflow resistance for gas-phase pollutant adsorption.

Coal-Based Columnar Activated Carbon

Extruded coal-based columnar activated carbon in 1.5 / 4 / 6 / 8 mm diameters for gas purification and industrial adsorption applications.

Coconut-Shell Activated Carbon

High-hardness, high-purity activated carbon produced from coconut shell by carbonization, crushing, screening, steam activation and refining.

Fruit-Shell Activated Carbon

Granular fruit-shell activated carbon for liquid-phase decolorization, water purification and catalyst support — STK and SXK series.

FAQ

Frequently Asked Questions

What concentrations suit activated carbon fiber?

Low-concentration streams — typical of indoor air handling, ventilation and light odor control. For concentrated industrial VOC streams, honeycomb or columnar carbon beds are usually more cost-effective.
