VOC Catalysts

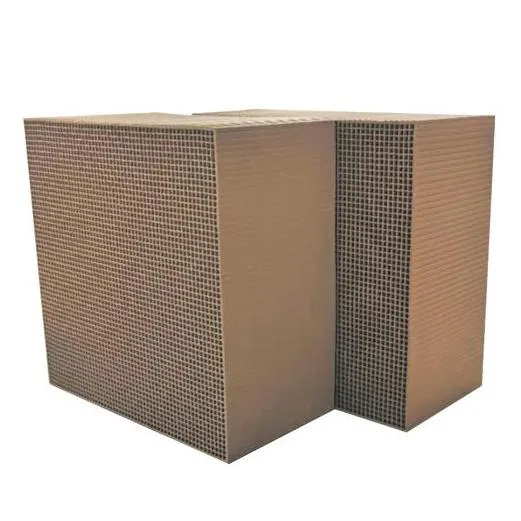

Platinum-Palladium Honeycomb Catalyst — YC-XB-B
Product model: YC-XB-B
A dual precious-metal (Pt + Pd) honeycomb catalyst with lower light-off temperature and a wider VOC applicability window for catalytic combustion systems.
Overview
YC-XB-B combines nano Pt and Pd active components. The bimetallic system lowers the light-off temperature compared with single-metal catalysts and extends applicability across mixed VOC compositions, making it a common choice for coating and printing exhaust treatment.

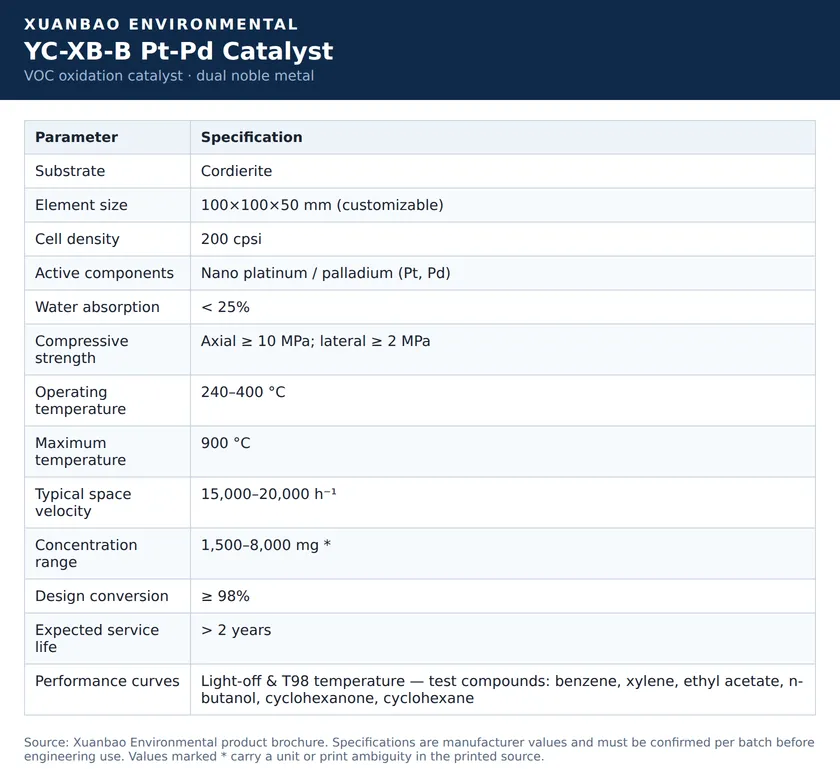

Technical Data
| Parameter | Specification |
|---|---|
| Substrate | Cordierite |
| Size | 100×100×50 mm, customizable |
| Cell density | 200 cpsi |
| Active components | Nano Pt / Pd |
| Water absorption | <25% |
| Axial strength | ≥10 MPa |
| Lateral strength | ≥2 MPa |
| Operating temperature | 240–400°C |
| Maximum temperature | 900°C |
| Typical space velocity | 15,000–20,000 h⁻¹ |
| Concentration range | 1,500–8,000 mg/m³ * |
| Design conversion | ≥98% |
| Expected service life | >2 years |
Values shown are manufacturer specifications or typical values unless marked (*). Parameters marked (*) are reproduced from source documentation and may contain unit or OCR ambiguities — they are reference values only and must be confirmed against the current product specification before use in engineering design. Design values are confirmed per project after operating conditions are reviewed. Please contact us for current data sheets.
Key Features
- Pt-Pd bimetallic system with lower light-off temperature
- Wider VOC applicability on mixed streams
- Higher maximum operating temperature (900°C)
- High mechanical strength
Typical Applications
- Coating
- Printing
- Chemical manufacturing
- Automotive manufacturing
Application Limits & Conditions
Data to Provide for a Quotation
To receive a material recommendation and quotation, please share your operating conditions:
- Gas flow rate (Nm³/h) and inlet / target outlet concentration
- Gas composition and main pollutant components
- Operating temperature and humidity
- SO₂ and dust concentration (where applicable)
- Existing reactor dimensions and current catalyst / adsorbent type
- Required service life and any special requirements
Same family
Related Products
Platinum Honeycomb VOC Catalyst
A single precious-metal (nano Pt) honeycomb catalyst for catalytic oxidation of VOCs in coating, printing, chemical and automotive manufacturing exhaust.
Non-Precious-Metal VOC Catalyst
A silver-copper-manganese composite oxide honeycomb catalyst offering a lower-cost catalytic oxidation option for suitable VOC streams.
FAQ
Frequently Asked Questions
Why choose Pt-Pd over a single Pt catalyst?
The Pd addition lowers the light-off temperature and improves conversion on certain VOC mixtures, which reduces preheating energy in catalytic oxidation systems.
