VOC Catalysts

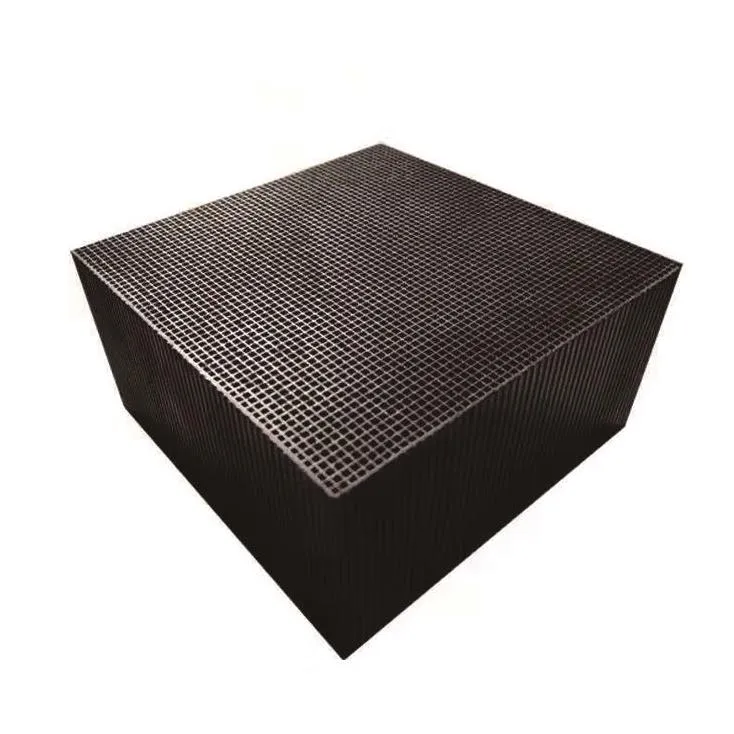

Non-Precious-Metal VOC Catalyst — YC-XB-C
Product model: YC-XB-C
A silver-copper-manganese composite oxide honeycomb catalyst offering a lower-cost catalytic oxidation option for suitable VOC streams.
Overview
YC-XB-C uses Ag/Cu/Mn composite oxides instead of platinum-group metals. It targets cost-sensitive applications and non-hydrocarbon VOC streams where the operating conditions fall within its window. Suitability must be confirmed by testing against the actual VOC composition.

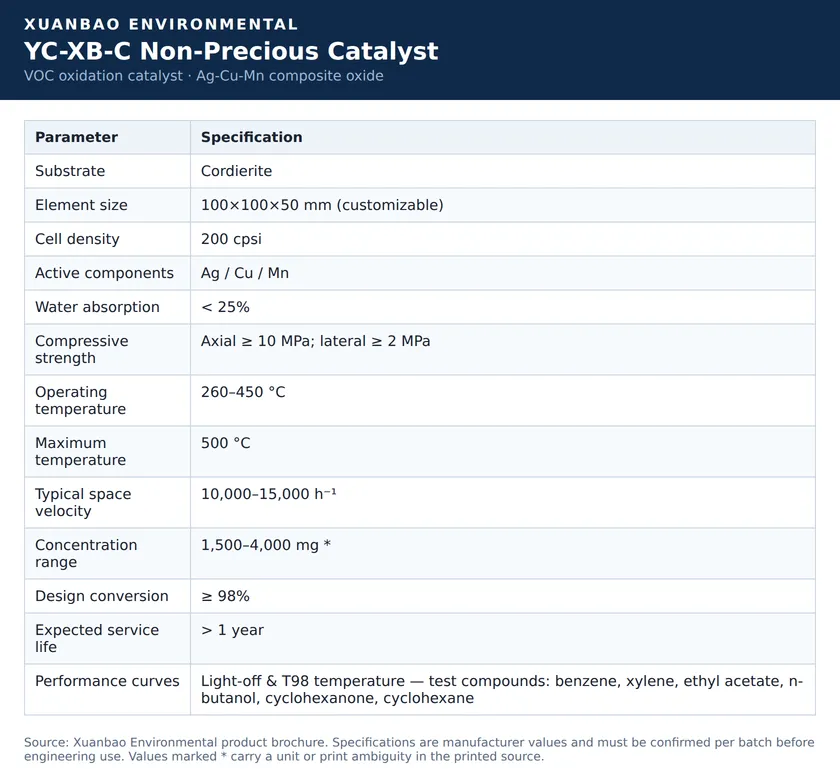

Technical Data
| Parameter | Specification |
|---|---|
| Substrate | Cordierite |
| Size | 100×100×50 mm |
| Cell density | 200 cpsi |
| Active components | Ag / Cu / Mn |
| Water absorption | <25% |
| Axial strength | ≥10 MPa |
| Lateral strength | ≥2 MPa |
| Operating temperature | 260–450°C |
| Maximum temperature | 500°C |
| Space velocity | 10,000–15,000 h⁻¹ |
| Concentration range | 1,500–4,000 mg/m³ * |
| Design conversion | ≥98% |
| Expected service life | >1 year |
Values shown are manufacturer specifications or typical values unless marked (*). Parameters marked (*) are reproduced from source documentation and may contain unit or OCR ambiguities — they are reference values only and must be confirmed against the current product specification before use in engineering design. Design values are confirmed per project after operating conditions are reviewed. Please contact us for current data sheets.
Key Features
- No platinum-group metals — lower material cost
- Suitable for non-hydrocarbon VOC streams
- Good thermal stability within its window
Typical Applications
- Non-hydrocarbon VOC catalytic oxidation
- Cost-sensitive VOC abatement projects
Application Limits & Conditions
Data to Provide for a Quotation
To receive a material recommendation and quotation, please share your operating conditions:
- Gas flow rate (Nm³/h) and inlet / target outlet concentration
- Gas composition and main pollutant components
- Operating temperature and humidity
- SO₂ and dust concentration (where applicable)
- Existing reactor dimensions and current catalyst / adsorbent type
- Required service life and any special requirements
Same family
Related Products
Platinum Honeycomb VOC Catalyst
A single precious-metal (nano Pt) honeycomb catalyst for catalytic oxidation of VOCs in coating, printing, chemical and automotive manufacturing exhaust.
Platinum-Palladium Honeycomb VOC Catalyst
A dual precious-metal (Pt + Pd) honeycomb catalyst with lower light-off temperature and a wider VOC applicability window for catalytic combustion systems.
FAQ
Frequently Asked Questions
When should I consider the non-precious-metal catalyst?
When the VOC stream is suitable (non-hydrocarbon, within 260–450°C) and material cost is a major constraint. We test your gas composition before confirming applicability.
Discuss this product for your gas conditions
Send us your operating conditions — we will confirm applicability and return a material recommendation.
